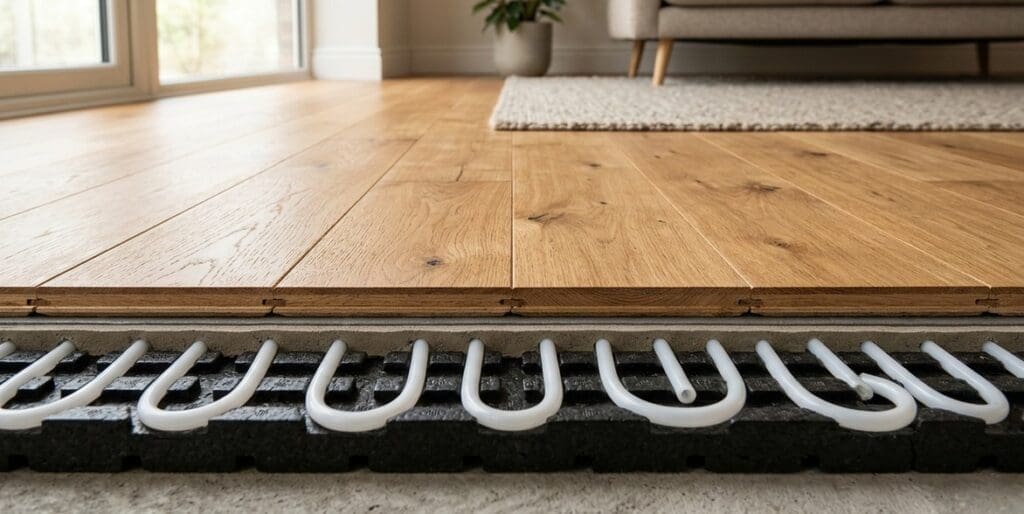

Engineered Wood Flooring and Underfloor Heating: The Complete UK Guide

If you are pairing a real wood floor with underfloor heating, engineered wood is almost certainly the timber you want. It is the one type of wooden floor built specifically to cope with the heat cycles that underfloor heating puts a floor through, which is exactly why solid wood is so often ruled out for the same job. This guide explains why engineered wood works over underfloor heating, how board thickness changes the way heat reaches your room, what temperature limits keep your floor and its warranty safe and how a floor should be commissioned so it lasts for decades rather than developing gaps and cupping in its first winter.

At Grosvenor Flooring in Altrincham we supply engineered wood for homes across South Manchester and Cheshire every week and underfloor heating is one of the most common reasons customers move away from solid timber. Whether you are specifying a wet system into a new extension or an electric mat under a bathroom-adjacent hallway, the same principles apply. You can see and walk on our full engineered wood flooring range at our Wood Room in Altrincham before you commit to anything.

Key takeaways

Every engineered wood floor is designed for underfloor heating. Its multi-ply core stays dimensionally stable through heat cycles where solid wood expands, contracts and gaps.
Thinner boards transfer heat faster. A 14mm or 15mm engineered board reaches the room quicker and runs more efficiently than a thick solid plank, which acts as an insulator.
The floor surface should never exceed 27 degrees C. This is the widely adopted industry maximum and the figure specified across wood and vinyl manufacturers alike.
Commissioning matters as much as the floor. Heating off for 48 hours before, during and after fitting, then a slow ramp of around 2 to 3 degrees C per day, protects the boards and keeps the warranty valid.
Engineered wood suits both wet and electric underfloor heating, provided the subfloor is properly prepared and the surface temperature is controlled by a floor sensor.

Is Engineered Wood Compatible With Underfloor Heating?

Yes. Engineered wood is the wooden floor built for underfloor heating and every board in a quality engineered range is UFH-compatible by design. The reason comes down to how the board is made. An engineered plank has a real hardwood top layer, usually European oak, bonded to a multi-ply birch or pine core with the grain of each layer running in alternating directions. That cross-ply construction is what gives the board its dimensional stability. When heat rises through the floor and the moisture content of the wood changes, the layers hold each other in check rather than the whole board moving in one direction.

This is the single biggest practical advantage engineered wood has over solid timber and it is why our whole GF Engineered Wood collection is suitable for use over underfloor heating. It is also why nearly every premium brand builds its ranges the same way. If you are weighing engineered wood against other floor types for a heated room, our guide to the best flooring for underfloor heating puts it in context alongside LVT and tile.

Why Solid Wood Does Not Work With Underfloor Heating

Solid wood flooring is a single piece of timber all the way through and timber is both a natural insulator and highly reactive to changes in temperature and humidity. Put a solid plank over underfloor heating and two problems appear. First, the wood insulates: the heating has to run hotter and longer to warm the room, which is inefficient and works against the whole point of underfloor heating. Second and more seriously, the constant heat cycling makes a solid board expand and contract far more than an engineered one. Over a heating season that movement shows up as cupping, bowing and gaps opening between boards, sometimes wide enough to feel a draught.

Most solid wood manufacturers either advise against underfloor heating entirely or restrict it heavily and fitting solid timber over UFH will usually void the floor’s warranty. Engineered wood exists precisely to solve this. Our dedicated engineered wood vs solid wood guide explains why the difference between solid and engineered construction is the deciding factor whenever underfloor heating is involved. Our engineered wood versus laminate guide covers the wider trade-offs between wood-look options.

Why Board Thickness Matters for Heat Transfer

Once you have decided on engineered wood, thickness is the specification that most affects how well the floor performs over underfloor heating. Wood resists the passage of heat, so the thicker the board the more slowly heat reaches the room and the harder the system has to work. Thermal resistance is measured in m2K/W and underfloor heating systems generally want the whole floor finish to stay below about 0.15 m2K/W so heat can pass through efficiently.

The good news is that engineered wood in the common 10mm to 15mm range sits comfortably inside that limit, typically between 0.07 and 0.14 m2K/W depending on thickness and the top layer. A 14mm or 15mm board with a 3mm to 4mm oak wear layer is the sweet spot for most heated rooms: thick enough to feel substantial underfoot and to be sanded and refinished in future, thin enough to let heat through quickly. Thicker 18mm and 20mm boards can still be used over underfloor heating but they respond more slowly and sit closer to the resistance ceiling, so they suit rooms where heat-up time is less of a priority.

The principle is simple: thinner and denser boards heat up faster. That does not mean choosing the thinnest board you can find, because you still want an adequate wear layer for longevity. It means matching the board to the room. You can browse our 14mm and 15mm engineered ranges, which are the two thicknesses we most often recommend for underfloor heating, or step down to a 10mm board where build height is tight and fast response matters most. For the full picture on board depth and wear layers, see our engineered wood thickness guide.

Thickness and Construction Compared for Underfloor Heating

Floor type and thickness	Typical thermal resistance (m2K/W)	Heat transfer and response	UFH suitability
Engineered 10 to 13mm	0.07 to 0.10	Fastest heat-up, lowest resistance	Excellent, ideal where response speed matters
Engineered 14 to 15mm	0.08 to 0.14	Fast heat-up, substantial underfoot	Excellent, the usual recommendation
Engineered 18 to 20mm	0.10 to 0.15	Slower response, near the resistance limit	Suitable if kept within 0.15 and commissioned carefully
Solid wood 18 to 20mm	Above 0.15, insulating	Poor, wood acts as a barrier and moves	Not recommended, high risk of cupping and gapping

Figures are indicative and vary by species and top-layer thickness. Always check the resistance value published for the specific board against your heating system’s design and add any underlay resistance to the total.

Wet Versus Electric Underfloor Heating

Engineered wood works over both main types of underfloor heating and the choice between them is usually driven by the property rather than the floor.

Wet (Hydronic) Systems

A wet system circulates warm water through pipes laid in or on the subfloor, usually run from a boiler or heat pump. Wet underfloor heating is the more common choice for whole-house heating and new-build extensions because it is efficient to run across large areas. It heats gently and evenly, which suits wood well, but it holds a lot of thermal mass, so it warms up and cools down slowly. That makes careful commissioning and a slow ramp especially important, because the pipes stay warm for a long time after the thermostat is satisfied.

Electric Systems

Electric underfloor heating uses a thin heating mat or cable laid directly under the floor finish. It is quicker to install, adds very little height and is often chosen for single rooms, retrofits and smaller areas such as hallways. Electric systems respond faster than wet ones, which is convenient, but that responsiveness means the surface can heat quickly, so a good floor sensor and a thermostat with a hard temperature limit are essential to stop the wood ever exceeding its safe surface temperature.

Whichever system you have, the same non-negotiable applies: the floor surface must be controlled by a floor sensor and capped at a safe maximum, not left to a room air thermostat alone.

The 27 Degrees C Surface Temperature Limit

The most important number for anyone laying wood over underfloor heating is the maximum floor surface temperature and across the industry that figure is 27 degrees C. This is not a wood-specific quirk. It is the same ceiling manufacturers of luxury vinyl and other temperature-sensitive floors specify and it is widely referenced as the standard maximum for underfloor heating under any wood or wood-look finish. Some manufacturers set a slightly lower limit for particular ranges, so the specific board’s technical sheet always takes priority, but 27 degrees C is the figure to design around.

Why it matters: exceed that surface temperature and you push the wood beyond the moisture range it was built for. The consequences are surface checking, gaps opening between boards, finish failure and long-term distortion. The practical fix is straightforward. Fit a floor sensor as part of the thermostat and set a hard maximum so the system physically cannot drive the surface past 27 degrees C, regardless of what the room air temperature is doing. A properly limited system will keep the floor safe indefinitely without you having to think about it.

Subfloor Preparation for Underfloor Heating

A heated floor is only as good as the subfloor under it and preparation matters more with underfloor heating than with any other installation. The subfloor must be sound, dry and flat before the floor goes down. With a new screed over a wet system this means allowing the screed to cure fully and then commissioning the heating to drive out residual construction moisture before the wood is anywhere near it. Skipping this step is one of the most common causes of problems, because a screed that looks dry on top can still hold moisture that will later migrate up into the wood.

Moisture testing is essential. The screed should be tested and shown to be within the manufacturer’s acceptable moisture limit before fitting and a suitable damp-proof membrane should be in place where required. The heating should then be run up and back down through a full commissioning cycle to prove it works and to stabilise the slab. Only once the subfloor is proven dry, flat and stable should the floor be acclimatised in the room and fitted. Our complete installation guide for engineered wood flooring covers acclimatisation and subfloor checks in more detail.

The Ramp-Up Protocol: Getting Commissioning Right

How you switch the heating on around the installation is what separates a floor that lasts from one that fails early. The sequence most manufacturers require follows a clear pattern.

Before fitting, the underfloor heating should be commissioned and then turned off, or brought right down, for around 48 hours before installation begins. The floor is fitted with the heating off and the heating stays off during fitting and for roughly 48 hours afterwards while adhesives cure and the boards settle. Only then is the heating brought back on and it must be increased gradually, not switched straight to full temperature. A safe ramp is in the region of 2 to 3 degrees C per day until working temperature is reached and the same slow, staged approach is used when bringing the system down at the end of the heating season.

The single biggest mistake homeowners make is turning a cold floor straight up to full heat on the first cold night of autumn. That thermal shock is exactly what causes gapping. Ramp up over several days at the start of each season and the floor will move gently and evenly instead. Always follow the specific manufacturer’s commissioning instructions for your board, because the exact timings and rates can vary between ranges.

Warranty Implications

Engineered wood warranties are generous, often 25 to 35 years for residential use, but that cover is conditional on the floor being used within its stated limits. Underfloor heating is where those conditions bite. A manufacturer will typically require that the surface temperature never exceeds the stated maximum, that the system is commissioned and the subfloor proven dry before fitting, that the floor is acclimatised and that the heating is ramped up and down gradually rather than shocked. Meet those conditions and the warranty stands. Ignore them, run the floor too hot or skip commissioning and a claim for cupping or gapping is very likely to be refused.

This is another reason the choice of engineered over solid is so clear-cut. Fit solid wood over underfloor heating and you are usually outside the warranty from day one. Fit a quality engineered board, control the temperature with a floor sensor and commission it properly and you have a real wood floor that is fully supported for decades. If you are choosing between brands, our best engineered wood flooring in the UK guide compares the main options and their construction.

Which Engineered Wood Brands Work With Underfloor Heating?

Because UFH compatibility comes from the engineered construction itself, every quality engineered brand we supply is suitable for underfloor heating when fitted and controlled correctly. The differences between brands are about finish, format and value rather than whether they can take heat.

Our own GF Engineered Wood collection is fully UFH-compatible across its plank, herringbone and Versailles formats and is the value benchmark for a heated room. V4 is a design-led British brand with a broad format library that suits open-plan heated spaces. At the premium British end, Ted Todd and Woodpecker both build characterful engineered ranges designed to run over underfloor heating. Among the European names, Kahrs and Parador are long-established engineered specialists whose boards are engineered for exactly this kind of use. Whichever you choose, check the individual board’s technical sheet for its thermal resistance value and its specific surface-temperature limit before you finalise the specification.

See Engineered Wood Over Underfloor Heating in Person

Choosing a wood floor for a heated room is much easier when you can see the boards at full length and feel the difference in thickness for yourself. Our Smart Showroom and Wood Room at 82 Stamford New Road, Altrincham, WA14 1BS is open 24 hours a day, 7 days a week with no appointment needed. Simply request your free door code and walk in at a time that suits you. Inside you can compare our full engineered wood range side by side and talk through thickness, finish and underfloor heating with real boards in front of you. Whether you are in Altrincham, Hale, Bowdon, Knutsford, Wilmslow or anywhere across South Manchester and Cheshire, the showroom is minutes from the M56 and A56.

Frequently asked questions

Can you put engineered wood flooring over underfloor heating?

Yes. Engineered wood is designed for underfloor heating. Its multi-ply core stays stable through heat cycles where solid wood would expand, contract and gap. Provided the surface temperature is capped at around 27 degrees C by a floor sensor and the floor is commissioned properly, engineered wood performs very well over both wet and electric systems.

What thickness of engineered wood is best for underfloor heating?

A 14mm or 15mm board with a 3mm to 4mm oak wear layer is the usual recommendation. It sits well within the thermal resistance limit for underfloor heating, transfers heat quickly and still has enough wear layer to be sanded and refinished in future. Thinner 10mm to 13mm boards heat up even faster and suit rooms where build height is tight or fast response matters most.

What temperature should underfloor heating be under wood flooring?

The floor surface should never exceed 27 degrees C, which is the widely adopted industry maximum for wood and wood-look floors. Some ranges specify a slightly lower limit, so always check the board’s technical sheet. Control the surface temperature with a floor sensor and a thermostat set to a hard maximum rather than relying on a room air thermostat alone.

Why can you not use solid wood with underfloor heating?

Solid wood is a single piece of timber that both insulates and reacts strongly to heat and humidity changes. Over underfloor heating it expands and contracts far more than an engineered board, leading to cupping, bowing and gaps and it forces the system to run hotter to warm the room. Most solid wood warranties exclude underfloor heating for this reason. Engineered wood is the timber built to solve the problem.

Does underfloor heating affect the engineered wood warranty?

It can if the conditions are not met. Manufacturers typically require the surface temperature to stay within the stated limit, the subfloor to be proven dry, the floor to be acclimatised and the heating to be ramped up and down gradually. Meet those conditions and the warranty stands. Run the floor too hot or skip commissioning and a claim for heat-related damage is likely to be refused.

How long should you wait before turning underfloor heating on after fitting?

The usual sequence is heating off for around 48 hours before fitting, off during fitting and for roughly 48 hours afterwards, then increased gradually at about 2 to 3 degrees C per day until working temperature is reached. The same slow ramp is used at the start of each heating season. Always follow the specific commissioning instructions supplied with your board.
